Kerloud Telemetry

Kerloud Telemetry is a reliable short-range telemetry presented by Cloudkernel Technologies (Shenzhen) Co.,Ltd for unmanned systems. The product is designed based on ISM Sub-G frequency domain, and featured with FSK modulation and high anti-disturbance performance. It can be connected with Pixhawk/Ardupilot autopilots easily with UART/USB interfaces.

Specifications

Specification Parameter Remark
Working frequency 915MHz
Power 100mW(20dBm)
Baud rate 57600(default)
Transmission range 800m @ 64kbps Outdoor empty environment
Interface Uart(GH1.25 4Pin)/Micro USB
Input voltage 3.8~5.5V @ Uart, 4.75~5.25V @ USB
3.3V
Current during transmission 100mA @ 20dBm, 40mA @ 14dBm Typical value
Current during receiving 25mA Typical value
Working temperature -20~85 ℃
Size (without antenna) 55(Length)×30(Width)×7(Height) unit:mm
Weight (with antenna) 15 unit:g

Features

  • Full ESD protection
  • High bandwidth CMOS analog switch channel
  • Professional antenna matching with proved wireless performance
  • Uniform interface, able to work either onboard or with ground control station
  • Configurable wireless channels, allowing multiple modules to work simultaneously
  • LED Indication

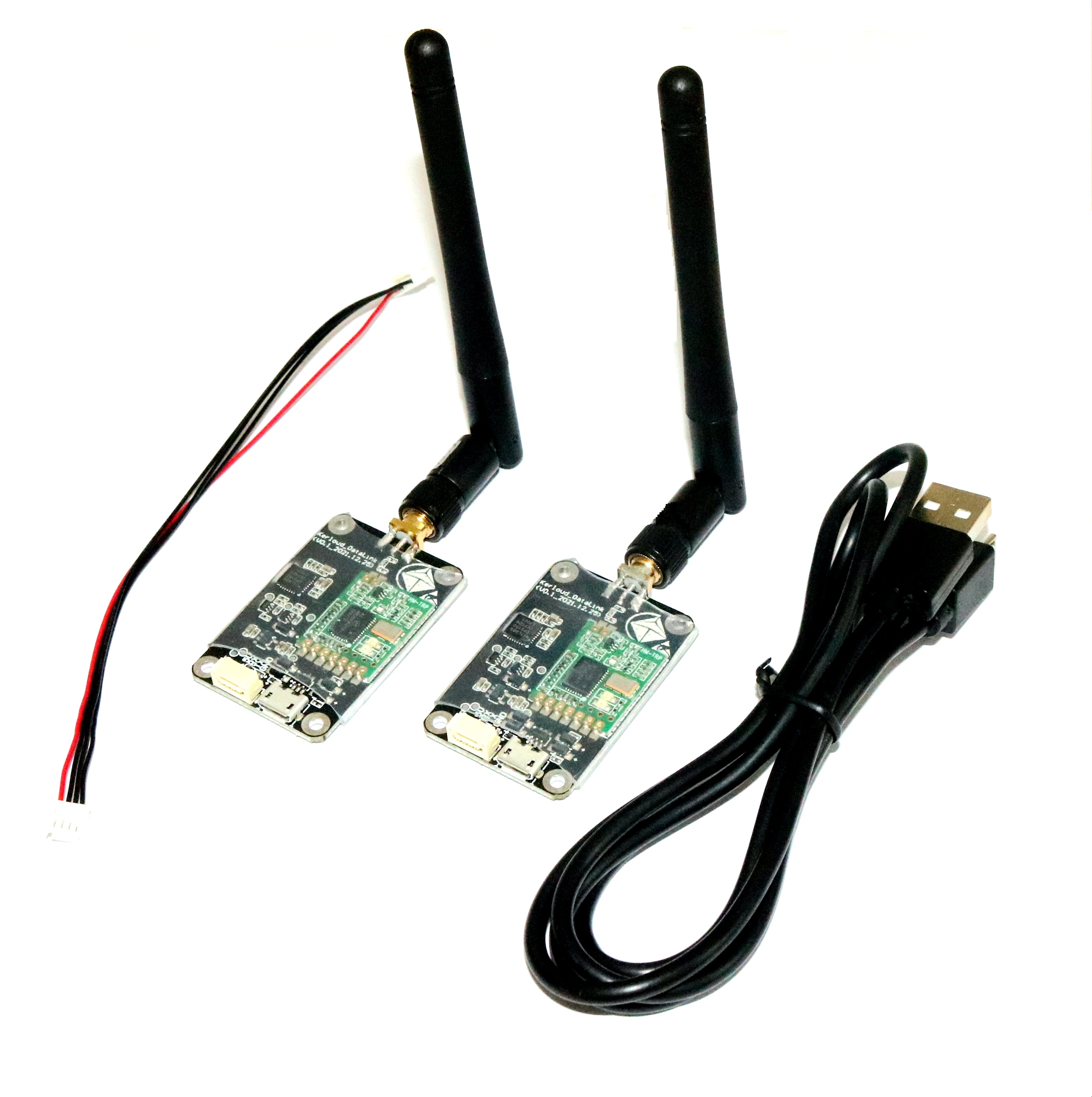

Package List

Item Qty
Kerloud telemetry module 2
Antenna 2
USB cable 1
Uart cable(GH) 1

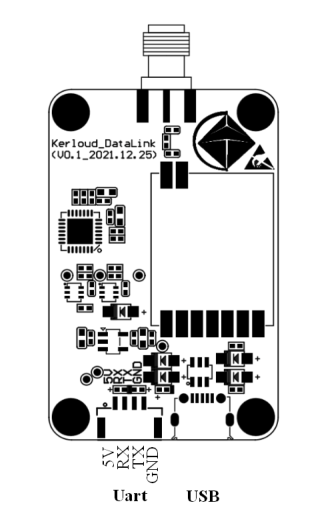

Interface

How to Purchase

For users in mainland China, please purchase via our official Taobao shop:

https://item.taobao.com/item.htm?&id=690661768758

For other users, please consult local agents for details or write us an email cloudkerneltech@gmail.com .
